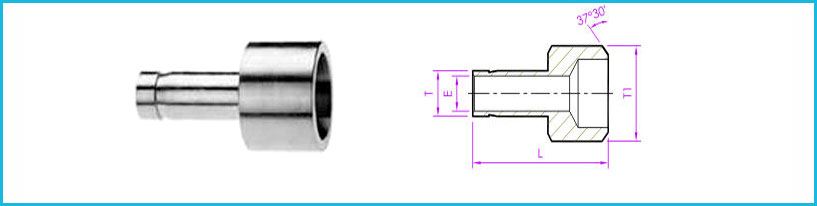

Excel Metal part no. Equivalent Part no. Type 1 Equivalent part no Type 2 ODT-ØT MALE PIPE WELD SIZE P Ø E ØT1 L
4-WAD-4PB SS-4-TA-1-4W ---------- 1/4  1/4  0.19  0.540  1.14
6-WAD-8PB SS-6-TA-1-8W ---------- 3/8  1/2  0.28  0.840  1.46
8-WAD-8PB SS-8-TA-1-8W ---------- 1/2  1/2  0.39  0.840  1.66
8-WAD-12PB SS-8-TA-1-12W ---------- 1/2  3/4  0.39  1.050  1.68
12-WAD-12PB SS-12-TA-1-12W ---------- 3/4  3/4  0.59  1.050  1.87

Note :

  • The dimension is the minimum opening & fitting of this group may be back drilling to larger id at pipe thread or straight thread end.
  • Dimensions are for reference only and subject to change.
